Pier and its mounting adapters

This guide applies to the following Omegon products:

Article number	Name	Includes the following adapter	Adapters are also available separately.
62564	Pro pier for mounts and binoculars	- without adapter -
85076	for (H)EQ5 and similar mounts	85074	“Skywatcher” mount adapter
86769	for 3/8” photo thread connection	85729	3/8'' mounting adapter
86770	for iOptron mounts	85730	iOptron mounting adapter
86771	for Vixen mounts 45mm	85731	Vixen mounting adapter

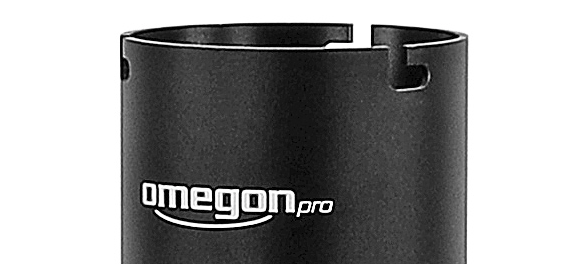

The pier alone, without the top section (#62564), is not yet suitable for mounting a mount or tripod head. On the top it ends in a tube with a 94mm inner diameter. Three angled recesses for M6 screws allow a suitable mount adapter to be attached to the top of the pillar. The (H)EQ5 adapter and the Vixen 45mm adapter are secured with knurled screws, while the other two adapters are attached with hex screws.
